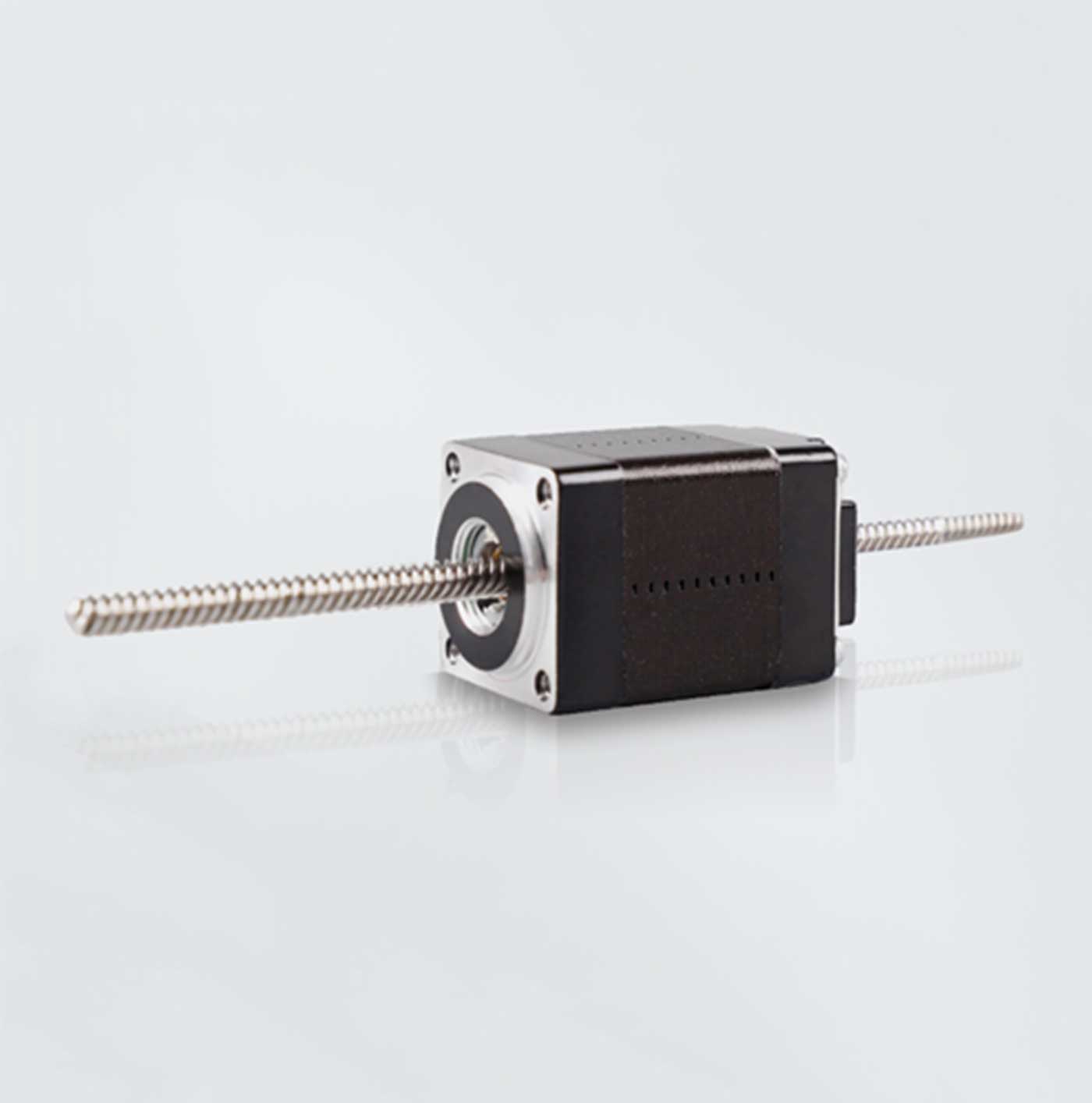

NEMA14, Non-captive linear stepper motor actuators, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.

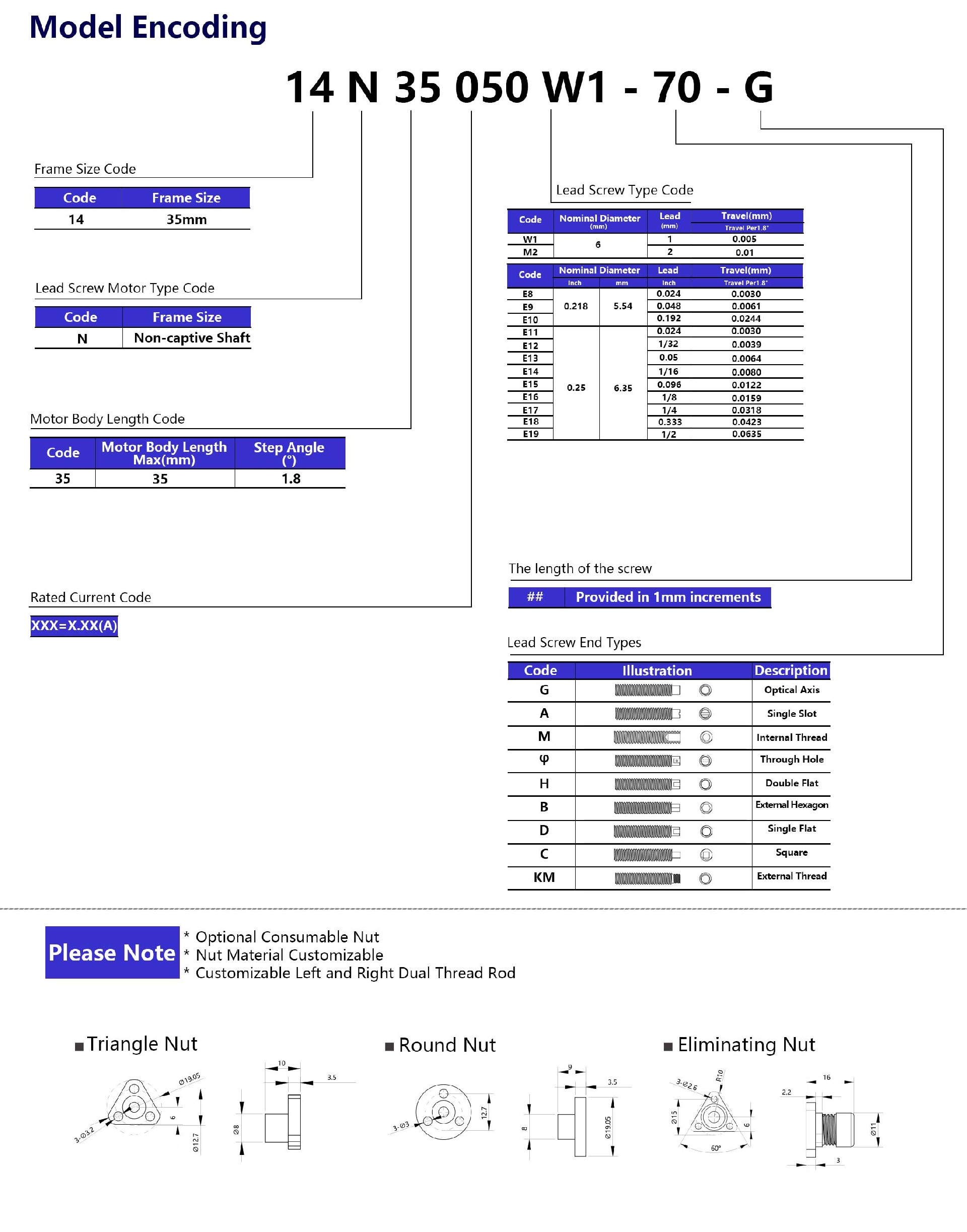

Item	Rated Current (A)	Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Screw Length (mm)	Rated Thrust (N @ 300RPM)	Phase	Linear Travel per Step (mm)
14N35050W1-70-G	0.5	35.1	6	1	70	88	2	0.005
14N35050W1-80-G	0.5	35.1	6	1	80	88	2	0.005
14N35050W1-100-G	0.5	35.1	6	1	100	88	2	0.005
14N35050W1-125-G	0.5	35.1	6	1	125	88	2	0.005
14N35050W1-150-G	0.5	35.1	6	1	150	88	2	0.005
14N35050W1-300-G	0.5	35.1	6	1	300	88	2	0.005
14N35050E12-70-G	0.5	35.1	6.35	0.79375	70	71	2	0.00396875
14N35050E12-80-G	0.5	35.1	6.35	0.79375	80	71	2	0.00396875
14N35050E12-100-G	0.5	35.1	6.35	0.79375	100	71	2	0.00396875
14N35050E12-125-G	0.5	35.1	6.35	0.79375	125	71	2	0.00396875
14N35050E12-150-G	0.5	35.1	6.35	0.79375	150	71	2	0.00396875
14N35050E12-300-G	0.5	35.1	6.35	0.79375	300	71	2	0.00396875
14N35050E17-70-G	0.5	35.1	6.35	6.35	70	23	2	0.03175
14N35050E17-80-G	0.5	35.1	6.35	6.35	80	23	2	0.03175
14N35050E17-100-G	0.5	35.1	6.35	6.35	100	23	2	0.03175
14N35050E17-125-G	0.5	35.1	6.35	6.35	125	23	2	0.03175
14N35050E17-150-G	0.5	35.1	6.35	6.35	150	23	2	0.03175
14N35050E17-300-G	0.5	35.1	6.35	6.35	300	23	2	0.03175
14N35050E19-70-G	0.5	35.1	6.35	12.7	70	13	2	0.0635
14N35050E19-80-G	0.5	35.1	6.35	12.7	80	13	2	0.0635
14N35050E19-100-G	0.5	35.1	6.35	12.7	100	13	2	0.0635
14N35050E19-125-G	0.5	35.1	6.35	12.7	125	13	2	0.0635
14N35050E19-150-G	0.5	35.1	6.35	12.7	150	13	2	0.0635
14N35050E19-300-G	0.5	35.1	6.35	12.7	300	13	2	0.0635
14N35100W1-70-G	1	35.1	6	1	70	121	2	0.005
14N35100W1-80-G	1	35.1	6	1	80	121	2	0.005
14N35100W1-100-G	1	35.1	6	1	100	121	2	0.005
14N35100W1-125-G	1	35.1	6	1	125	121	2	0.005
14N35100W1-150-G	1	35.1	6	1	150	121	2	0.005
14N35100W1-300-G	1	35.1	6	1	300	121	2	0.005
14N35100E12-70-G	1	35.1	6.35	0.79375	70	98	2	0.00396875
14N35100E12-80-G	1	35.1	6.35	0.79375	80	98	2	0.00396875
14N35100E12-100-G	1	35.1	6.35	0.79375	100	98	2	0.00396875
14N35100E12-125-G	1	35.1	6.35	0.79375	125	98	2	0.00396875
14N35100E12-150-G	1	35.1	6.35	0.79375	150	98	2	0.00396875
14N35100E12-300-G	1	35.1	6.35	0.79375	300	98	2	0.00396875
14N35100E17-70-G	1	35.1	6.35	6.35	70	32	2	0.03175
14N35100E17-80-G	1	35.1	6.35	6.35	80	32	2	0.03175
14N35100E17-100-G	1	35.1	6.35	6.35	100	32	2	0.03175
14N35100E17-125-G	1	35.1	6.35	6.35	125	32	2	0.03175
14N35100E17-150-G	1	35.1	6.35	6.35	150	32	2	0.03175
14N35100E17-300-G	1	35.1	6.35	6.35	300	32	2	0.03175
14N35100E19-70-G	1	35.1	6.35	12.7	70	17	2	0.0635
14N35100E19-80-G	1	35.1	6.35	12.7	80	17	2	0.0635
14N35100E19-100-G	1	35.1	6.35	12.7	100	17	2	0.0635
14N35100E19-125-G	1	35.1	6.35	12.7	125	17	2	0.0635
14N35100E19-150-G	1	35.1	6.35	12.7	150	17	2	0.0635
14N35100E19-300-G	1	35.1	6.35	12.7	300	17	2	0.0635
14N35150W1-70-G	1.5	35.1	6	1	70	125	2	0.005
14N35150W1-80-G	1.5	35.1	6	1	80	125	2	0.005
14N35150W1-100-G	1.5	35.1	6	1	100	125	2	0.005
14N35150W1-125-G	1.5	35.1	6	1	125	125	2	0.005
14N35150W1-150-G	1.5	35.1	6	1	150	125	2	0.005
14N35150W1-300-G	1.5	35.1	6	1	300	125	2	0.005
14N35150E12-70-G	1.5	35.1	6.35	0.79375	70	101	2	0.00396875
14N35150E12-80-G	1.5	35.1	6.35	0.79375	80	101	2	0.00396875
14N35150E12-100-G	1.5	35.1	6.35	0.79375	100	101	2	0.00396875
14N35150E12-125-G	1.5	35.1	6.35	0.79375	125	101	2	0.00396875
14N35150E12-150-G	1.5	35.1	6.35	0.79375	150	101	2	0.00396875
14N35150E12-300-G	1.5	35.1	6.35	0.79375	300	101	2	0.00396875
14N35150E17-70-G	1.5	35.1	6.35	6.35	70	33	2	0.03175
14N35150E17-80-G	1.5	35.1	6.35	6.35	80	33	2	0.03175
14N35150E17-100-G	1.5	35.1	6.35	6.35	100	33	2	0.03175
14N35150E17-125-G	1.5	35.1	6.35	6.35	125	33	2	0.03175
14N35150E17-150-G	1.5	35.1	6.35	6.35	150	33	2	0.03175
14N35150E17-300-G	1.5	35.1	6.35	6.35	300	33	2	0.03175
14N35150E19-70-G	1.5	35.1	6.35	12.7	70	18	2	0.0635
14N35150E19-80-G	1.5	35.1	6.35	12.7	80	18	2	0.0635
14N35150E19-100-G	1.5	35.1	6.35	12.7	100	18	2	0.0635
14N35150E19-125-G	1.5	35.1	6.35	12.7	125	18	2	0.0635
14N35150E19-150-G	1.5	35.1	6.35	12.7	150	18	2	0.0635
14N35150E19-300-G	1.5	35.1	6.35	12.7	300	18	2	0.0635
