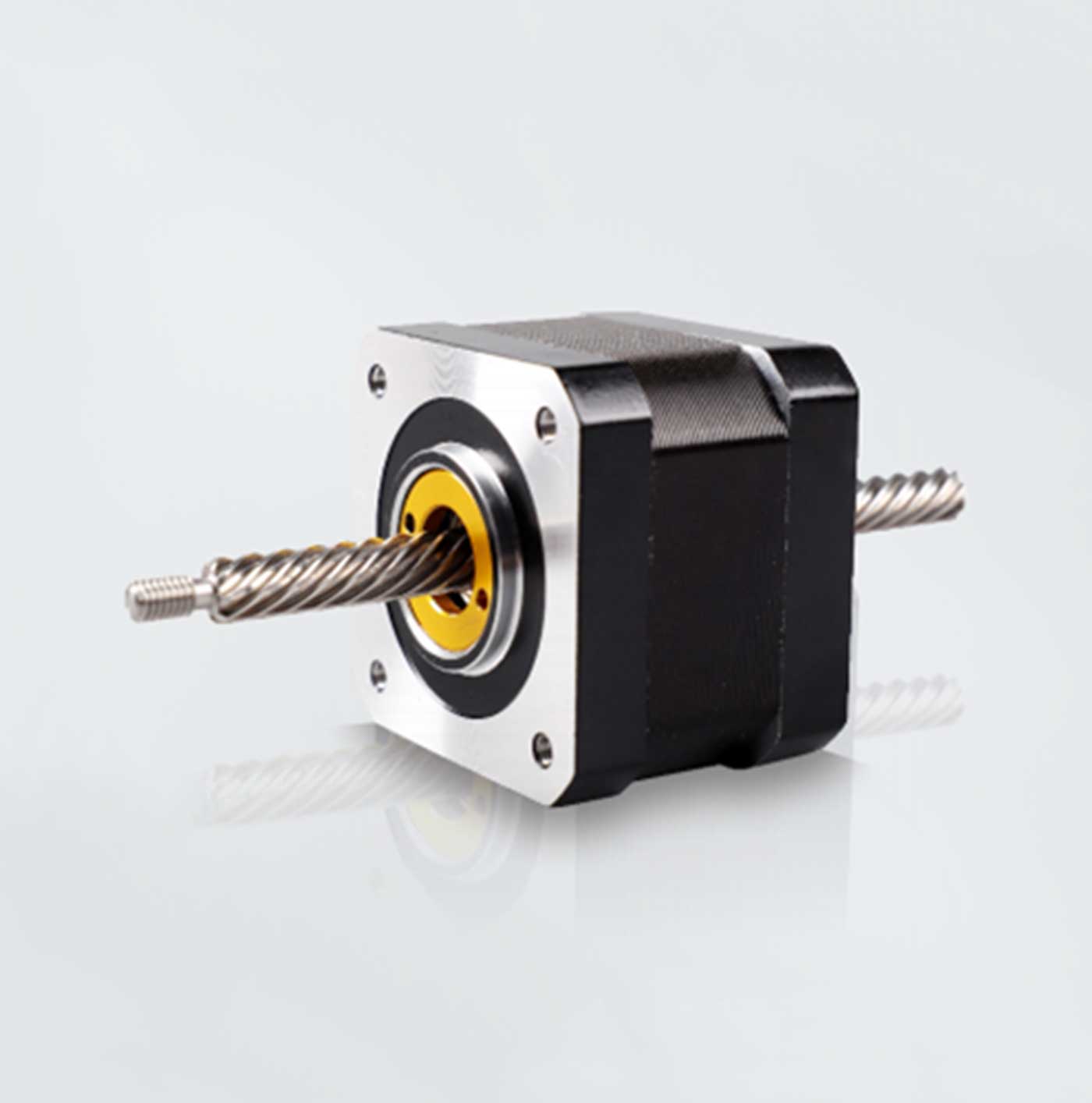

NEMA17 42mm Non-captive Hybrid Linear stepper Motors-Stepper & BLDC Motor Manufacturer Wholesale

Product Table

Product List

NEMA17, Non-captive linear stepper motor actuators, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.

Item	Rated Current (A)	Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Screw Length (mm)	Rated Thrust (N @ 300RPM)	Phase	Linear Travel per Step (mm)
17N34065W1-80-G	0.65	34.3	6	1	80	168	2	0.005
17N34065W1-90-G	0.65	34.3	6	1	90	168	2	0.005
17N34065W1-100-G	0.65	34.3	6	1	100	168	2	0.005
17N34065W1-110-G	0.65	34.3	6	1	110	168	2	0.005
17N34065W1-125-G	0.65	34.3	6	1	125	168	2	0.005
17N34065W1-155-G	0.65	34.3	6	1	155	168	2	0.005
17N34065W1-170-G	0.65	34.3	6	1	170	168	2	0.005
17N34065W1-180-G	0.65	34.3	6	1	180	168	2	0.005
17N34065W1-210-G	0.65	34.3	6	1	210	168	2	0.005
17N34065W1-250-G	0.65	34.3	6	1	250	168	2	0.005
17N34065W1-300-G	0.65	34.3	6	1	300	168	2	0.005
17N34065E12-80-G	0.65	34.3	6.35	0.79375	80	136	2	0.00396875
17N34065E12-90-G	0.65	34.3	6.35	0.79375	90	136	2	0.00396875
17N34065E12-100-G	0.65	34.3	6.35	0.79375	100	136	2	0.00396875
17N34065E12-110-G	0.65	34.3	6.35	0.79375	110	136	2	0.00396875
17N34065E12-125-G	0.65	34.3	6.35	0.79375	125	136	2	0.00396875
17N34065E12-155-G	0.65	34.3	6.35	0.79375	155	136	2	0.00396875
17N34065E12-170-G	0.65	34.3	6.35	0.79375	170	136	2	0.00396875
17N34065E12-180-G	0.65	34.3	6.35	0.79375	180	136	2	0.00396875
17N34065E12-210-G	0.65	34.3	6.35	0.79375	210	136	2	0.00396875
17N34065E12-250-G	0.65	34.3	6.35	0.79375	250	136	2	0.00396875
17N34065E12-300-G	0.65	34.3	6.35	0.79375	300	136	2	0.00396875
17N34065E17-80-G	0.65	34.3	6.35	6.35	80	43	2	0.03175
17N34065E17-90-G	0.65	34.3	6.35	6.35	90	43	2	0.03175
17N34065E17-100-G	0.65	34.3	6.35	6.35	100	43	2	0.03175
17N34065E17-110-G	0.65	34.3	6.35	6.35	110	43	2	0.03175
17N34065E17-125-G	0.65	34.3	6.35	6.35	125	43	2	0.03175
17N34065E17-155-G	0.65	34.3	6.35	6.35	155	43	2	0.03175
17N34065E17-170-G	0.65	34.3	6.35	6.35	170	43	2	0.03175
17N34065E17-180-G	0.65	34.3	6.35	6.35	180	43	2	0.03175
17N34065E17-210-G	0.65	34.3	6.35	6.35	210	43	2	0.03175
17N34065E17-250-G	0.65	34.3	6.35	6.35	250	43	2	0.03175
17N34065E17-300-G	0.65	34.3	6.35	6.35	300	43	2	0.03175
17N34065E19-80-G	0.65	34.3	6.35	12.7	80	23	2	0.0635
17N34065E19-90-G	0.65	34.3	6.35	12.7	90	23	2	0.0635
17N34065E19-100-G	0.65	34.3	6.35	12.7	100	23	2	0.0635
17N34065E19-110-G	0.65	34.3	6.35	12.7	110	23	2	0.0635
17N34065E19-125-G	0.65	34.3	6.35	12.7	125	23	2	0.0635
17N34065E19-155-G	0.65	34.3	6.35	12.7	155	23	2	0.0635
17N34065E19-170-G	0.65	34.3	6.35	12.7	170	23	2	0.0635
17N34065E19-180-G	0.65	34.3	6.35	12.7	180	23	2	0.0635
17N34065E19-210-G	0.65	34.3	6.35	12.7	210	23	2	0.0635
17N34065E19-250-G	0.65	34.3	6.35	12.7	250	23	2	0.0635
17N34065E19-300-G	0.65	34.3	6.35	12.7	300	23	2	0.0635
17N34100W1-80-G	1	34.3	6	1	80	198	2	0.005
17N34100W1-90-G	1	34.3	6	1	90	198	2	0.005
17N34100W1-100-G	1	34.3	6	1	100	198	2	0.005
17N34100W1-110-G	1	34.3	6	1	110	198	2	0.005
17N34100W1-125-G	1	34.3	6	1	125	198	2	0.005
17N34100W1-155-G	1	34.3	6	1	155	198	2	0.005
17N34100W1-170-G	1	34.3	6	1	170	198	2	0.005
17N34100W1-180-G	1	34.3	6	1	180	198	2	0.005
17N34100W1-210-G	1	34.3	6	1	210	198	2	0.005
17N34100W1-250-G	1	34.3	6	1	250	198	2	0.005
17N34100W1-300-G	1	34.3	6	1	300	198	2	0.005
17N34100E12-80-G	1	34.3	6.35	0.79375	80	160	2	0.00396875
17N34100E12-90-G	1	34.3	6.35	0.79375	90	160	2	0.00396875
17N34100E12-100-G	1	34.3	6.35	0.79375	100	160	2	0.00396875
17N34100E12-110-G	1	34.3	6.35	0.79375	110	160	2	0.00396875
17N34100E12-125-G	1	34.3	6.35	0.79375	125	160	2	0.00396875
17N34100E12-155-G	1	34.3	6.35	0.79375	155	160	2	0.00396875
17N34100E12-170-G	1	34.3	6.35	0.79375	170	160	2	0.00396875
17N34100E12-180-G	1	34.3	6.35	0.79375	180	160	2	0.00396875
17N34100E12-210-G	1	34.3	6.35	0.79375	210	160	2	0.00396875
17N34100E12-250-G	1	34.3	6.35	0.79375	250	160	2	0.00396875
17N34100E12-300-G	1	34.3	6.35	0.79375	300	160	2	0.00396875
17N34100E17-80-G	1	34.3	6.35	6.35	80	53	2	0.03175
17N34100E17-90-G	1	34.3	6.35	6.35	90	53	2	0.03175
17N34100E17-100-G	1	34.3	6.35	6.35	100	53	2	0.03175
17N34100E17-110-G	1	34.3	6.35	6.35	110	53	2	0.03175
17N34100E17-125-G	1	34.3	6.35	6.35	125	53	2	0.03175
17N34100E17-155-G	1	34.3	6.35	6.35	155	53	2	0.03175
17N34100E17-170-G	1	34.3	6.35	6.35	170	53	2	0.03175
17N34100E17-180-G	1	34.3	6.35	6.35	180	53	2	0.03175
17N34100E17-210-G	1	34.3	6.35	6.35	210	53	2	0.03175
17N34100E17-250-G	1	34.3	6.35	6.35	250	53	2	0.03175
17N34100E17-300-G	1	34.3	6.35	6.35	300	53	2	0.03175
17N34100E19-80-G	1	34.3	6.35	12.7	80	28	2	0.0635
17N34100E19-90-G	1	34.3	6.35	12.7	90	28	2	0.0635
17N34100E19-100-G	1	34.3	6.35	12.7	100	28	2	0.0635
17N34100E19-110-G	1	34.3	6.35	12.7	110	28	2	0.0635
17N34100E19-125-G	1	34.3	6.35	12.7	125	28	2	0.0635
17N34100E19-155-G	1	34.3	6.35	12.7	155	28	2	0.0635
17N34100E19-170-G	1	34.3	6.35	12.7	170	28	2	0.0635
17N34100E19-180-G	1	34.3	6.35	12.7	180	28	2	0.0635
17N34100E19-210-G	1	34.3	6.35	12.7	210	28	2	0.0635
17N34100E19-250-G	1	34.3	6.35	12.7	250	28	2	0.0635
17N34100E19-300-G	1	34.3	6.35	12.7	300	28	2	0.0635
17N34150W1-80-G	1.5	34.3	6	1	80	203	2	0.005
17N34150W1-90-G	1.5	34.3	6	1	90	203	2	0.005
17N34150W1-100-G	1.5	34.3	6	1	100	203	2	0.005
17N34150W1-110-G	1.5	34.3	6	1	110	203	2	0.005
17N34150W1-125-G	1.5	34.3	6	1	125	203	2	0.005
17N34150W1-155-G	1.5	34.3	6	1	155	203	2	0.005
17N34150W1-170-G	1.5	34.3	6	1	170	203	2	0.005
17N34150W1-180-G	1.5	34.3	6	1	180	203	2	0.005
17N34150W1-210-G	1.5	34.3	6	1	210	203	2	0.005
17N34150W1-250-G	1.5	34.3	6	1	250	203	2	0.005
17N34150W1-300-G	1.5	34.3	6	1	300	203	2	0.005
17N34150E12-80-G	1.5	34.3	6.35	0.79375	80	164	2	0.00396875
17N34150E12-90-G	1.5	34.3	6.35	0.79375	90	164	2	0.00396875
17N34150E12-100-G	1.5	34.3	6.35	0.79375	100	164	2	0.00396875
17N34150E12-110-G	1.5	34.3	6.35	0.79375	110	164	2	0.00396875
17N34150E12-125-G	1.5	34.3	6.35	0.79375	125	164	2	0.00396875
17N34150E12-155-G	1.5	34.3	6.35	0.79375	155	164	2	0.00396875
17N34150E12-170-G	1.5	34.3	6.35	0.79375	170	164	2	0.00396875
17N34150E12-180-G	1.5	34.3	6.35	0.79375	180	164	2	0.00396875
17N34150E12-210-G	1.5	34.3	6.35	0.79375	210	164	2	0.00396875
17N34150E12-250-G	1.5	34.3	6.35	0.79375	250	164	2	0.00396875
17N34150E12-300-G	1.5	34.3	6.35	0.79375	300	164	2	0.00396875
17N34150E17-80-G	1.5	34.3	6.35	6.35	80	53	2	0.03175
17N34150E17-90-G	1.5	34.3	6.35	6.35	90	53	2	0.03175
17N34150E17-100-G	1.5	34.3	6.35	6.35	100	53	2	0.03175
17N34150E17-110-G	1.5	34.3	6.35	6.35	110	53	2	0.03175
17N34150E17-125-G	1.5	34.3	6.35	6.35	125	53	2	0.03175
17N34150E17-155-G	1.5	34.3	6.35	6.35	155	53	2	0.03175
17N34150E17-170-G	1.5	34.3	6.35	6.35	170	53	2	0.03175
17N34150E17-180-G	1.5	34.3	6.35	6.35	180	53	2	0.03175
17N34150E17-210-G	1.5	34.3	6.35	6.35	210	53	2	0.03175
17N34150E17-250-G	1.5	34.3	6.35	6.35	250	53	2	0.03175
17N34150E17-300-G	1.5	34.3	6.35	6.35	300	53	2	0.03175
17N34150E19-80-G	1.5	34.3	6.35	12.7	80	29	2	0.0635
17N34150E19-90-G	1.5	34.3	6.35	12.7	90	29	2	0.0635
17N34150E19-100-G	1.5	34.3	6.35	12.7	100	29	2	0.0635
17N34150E19-110-G	1.5	34.3	6.35	12.7	110	29	2	0.0635
17N34150E19-125-G	1.5	34.3	6.35	12.7	125	29	2	0.0635
17N34150E19-155-G	1.5	34.3	6.35	12.7	155	29	2	0.0635
17N34150E19-170-G	1.5	34.3	6.35	12.7	170	29	2	0.0635
17N34150E19-180-G	1.5	34.3	6.35	12.7	180	29	2	0.0635
17N34150E19-210-G	1.5	34.3	6.35	12.7	210	29	2	0.0635
17N34150E19-250-G	1.5	34.3	6.35	12.7	250	29	2	0.0635
17N34150E19-300-G	1.5	34.3	6.35	12.7	300	29	2	0.0635
17N40100W1-80-G	1	39.8	6	1	80	218	2	0.005
17N40100W1-90-G	1	39.8	6	1	90	218	2	0.005
17N40100W1-100-G	1	39.8	6	1	100	218	2	0.005
17N40100W1-110-G	1	39.8	6	1	110	218	2	0.005
17N40100W1-125-G	1	39.8	6	1	125	218	2	0.005
17N40100W1-155-G	1	39.8	6	1	155	218	2	0.005
17N40100W1-170-G	1	39.8	6	1	170	218	2	0.005
17N40100W1-180-G	1	39.8	6	1	180	218	2	0.005
17N40100W1-210-G	1	39.8	6	1	210	218	2	0.005
17N40100W1-250-G	1	39.8	6	1	250	218	2	0.005
17N40100W1-300-G	1	39.8	6	1	300	218	2	0.005
17N40100E12-80-G	1	39.8	6.35	0.79375	80	176	2	0.00396875
17N40100E12-90-G	1	39.8	6.35	0.79375	90	176	2	0.00396875
17N40100E12-100-G	1	39.8	6.35	0.79375	100	176	2	0.00396875
17N40100E12-110-G	1	39.8	6.35	0.79375	110	176	2	0.00396875
17N40100E12-125-G	1	39.8	6.35	0.79375	125	176	2	0.00396875
17N40100E12-155-G	1	39.8	6.35	0.79375	155	176	2	0.00396875
17N40100E12-170-G	1	39.8	6.35	0.79375	170	176	2	0.00396875
17N40100E12-180-G	1	39.8	6.35	0.79375	180	176	2	0.00396875
17N40100E12-210-G	1	39.8	6.35	0.79375	210	176	2	0.00396875
17N40100E12-250-G	1	39.8	6.35	0.79375	250	176	2	0.00396875
17N40100E12-300-G	1	39.8	6.35	0.79375	300	176	2	0.00396875
17N40100E17-80-G	1	39.8	6.35	6.35	80	58	2	0.03175
17N40100E17-90-G	1	39.8	6.35	6.35	90	58	2	0.03175
17N40100E17-100-G	1	39.8	6.35	6.35	100	58	2	0.03175
17N40100E17-110-G	1	39.8	6.35	6.35	110	58	2	0.03175
17N40100E17-125-G	1	39.8	6.35	6.35	125	58	2	0.03175
17N40100E17-155-G	1	39.8	6.35	6.35	155	58	2	0.03175
17N40100E17-170-G	1	39.8	6.35	6.35	170	58	2	0.03175
17N40100E17-180-G	1	39.8	6.35	6.35	180	58	2	0.03175
17N40100E17-210-G	1	39.8	6.35	6.35	210	58	2	0.03175
17N40100E17-250-G	1	39.8	6.35	6.35	250	58	2	0.03175
17N40100E17-300-G	1	39.8	6.35	6.35	300	58	2	0.03175
17N40100E19-80-G	1	39.8	6.35	12.7	80	31	2	0.0635
17N40100E19-90-G	1	39.8	6.35	12.7	90	31	2	0.0635
17N40100E19-100-G	1	39.8	6.35	12.7	100	31	2	0.0635
17N40100E19-110-G	1	39.8	6.35	12.7	110	31	2	0.0635
17N40100E19-125-G	1	39.8	6.35	12.7	125	31	2	0.0635
17N40100E19-155-G	1	39.8	6.35	12.7	155	31	2	0.0635
17N40100E19-170-G	1	39.8	6.35	12.7	170	31	2	0.0635
17N40100E19-180-G	1	39.8	6.35	12.7	180	31	2	0.0635
17N40100E19-210-G	1	39.8	6.35	12.7	210	31	2	0.0635
17N40100E19-250-G	1	39.8	6.35	12.7	250	31	2	0.0635
17N40100E19-300-G	1	39.8	6.35	12.7	300	31	2	0.0635
17N40150W1-80-G	1.5	39.8	6	1	80	255	2	0.005
17N40150W1-90-G	1.5	39.8	6	1	90	255	2	0.005
17N40150W1-100-G	1.5	39.8	6	1	100	255	2	0.005
17N40150W1-110-G	1.5	39.8	6	1	110	255	2	0.005
17N40150W1-125-G	1.5	39.8	6	1	125	255	2	0.005
17N40150W1-155-G	1.5	39.8	6	1	155	255	2	0.005
17N40150W1-170-G	1.5	39.8	6	1	170	255	2	0.005
17N40150W1-180-G	1.5	39.8	6	1	180	255	2	0.005
17N40150W1-210-G	1.5	39.8	6	1	210	255	2	0.005
17N40150W1-250-G	1.5	39.8	6	1	250	255	2	0.005
17N40150W1-300-G	1.5	39.8	6	1	300	255	2	0.005
17N40150E12-80-G	1.5	39.8	6.35	0.79375	80	206	2	0.00396875
17N40150E12-90-G	1.5	39.8	6.35	0.79375	90	206	2	0.00396875
17N40150E12-100-G	1.5	39.8	6.35	0.79375	100	206	2	0.00396875
17N40150E12-110-G	1.5	39.8	6.35	0.79375	110	206	2	0.00396875
17N40150E12-125-G	1.5	39.8	6.35	0.79375	125	206	2	0.00396875
17N40150E12-155-G	1.5	39.8	6.35	0.79375	155	206	2	0.00396875
17N40150E12-170-G	1.5	39.8	6.35	0.79375	170	206	2	0.00396875
17N40150E12-180-G	1.5	39.8	6.35	0.79375	180	206	2	0.00396875
17N40150E12-210-G	1.5	39.8	6.35	0.79375	210	206	2	0.00396875
17N40150E12-250-G	1.5	39.8	6.35	0.79375	250	206	2	0.00396875
17N40150E12-300-G	1.5	39.8	6.35	0.79375	300	206	2	0.00396875
17N40150E17-80-G	1.5	39.8	6.35	6.35	80	67	2	0.03175
17N40150E17-90-G	1.5	39.8	6.35	6.35	90	67	2	0.03175
17N40150E17-100-G	1.5	39.8	6.35	6.35	100	67	2	0.03175
17N40150E17-110-G	1.5	39.8	6.35	6.35	110	67	2	0.03175
17N40150E17-125-G	1.5	39.8	6.35	6.35	125	67	2	0.03175
17N40150E17-155-G	1.5	39.8	6.35	6.35	155	67	2	0.03175
17N40150E17-170-G	1.5	39.8	6.35	6.35	170	67	2	0.03175
17N40150E17-180-G	1.5	39.8	6.35	6.35	180	67	2	0.03175
17N40150E17-210-G	1.5	39.8	6.35	6.35	210	67	2	0.03175
17N40150E17-250-G	1.5	39.8	6.35	6.35	250	67	2	0.03175
17N40150E17-300-G	1.5	39.8	6.35	6.35	300	67	2	0.03175
17N40150E19-80-G	1.5	39.8	6.35	12.7	80	36	2	0.0635
17N40150E19-90-G	1.5	39.8	6.35	12.7	90	36	2	0.0635
17N40150E19-100-G	1.5	39.8	6.35	12.7	100	36	2	0.0635
17N40150E19-110-G	1.5	39.8	6.35	12.7	110	36	2	0.0635
17N40150E19-125-G	1.5	39.8	6.35	12.7	125	36	2	0.0635
17N40150E19-155-G	1.5	39.8	6.35	12.7	155	36	2	0.0635
17N40150E19-170-G	1.5	39.8	6.35	12.7	170	36	2	0.0635
17N40150E19-180-G	1.5	39.8	6.35	12.7	180	36	2	0.0635
17N40150E19-210-G	1.5	39.8	6.35	12.7	210	36	2	0.0635
17N40150E19-250-G	1.5	39.8	6.35	12.7	250	36	2	0.0635
17N40150E19-300-G	1.5	39.8	6.35	12.7	300	36	2	0.0635
17N40200W1-80-G	2	39.8	6	1	80	265	2	0.005
17N40200W1-90-G	2	39.8	6	1	90	265	2	0.005
17N40200W1-100-G	2	39.8	6	1	100	265	2	0.005
17N40200W1-110-G	2	39.8	6	1	110	265	2	0.005
17N40200W1-125-G	2	39.8	6	1	125	265	2	0.005
17N40200W1-155-G	2	39.8	6	1	155	265	2	0.005
17N40200W1-170-G	2	39.8	6	1	170	265	2	0.005
17N40200W1-180-G	2	39.8	6	1	180	265	2	0.005
17N40200W1-210-G	2	39.8	6	1	210	265	2	0.005
17N40200W1-250-G	2	39.8	6	1	250	265	2	0.005
17N40200W1-300-G	2	39.8	6	1	300	265	2	0.005
17N40200E12-80-G	2	39.8	6.35	0.79375	80	213	2	0.00396875
17N40200E12-90-G	2	39.8	6.35	0.79375	90	213	2	0.00396875
17N40200E12-100-G	2	39.8	6.35	0.79375	100	213	2	0.00396875
17N40200E12-110-G	2	39.8	6.35	0.79375	110	213	2	0.00396875
17N40200E12-125-G	2	39.8	6.35	0.79375	125	213	2	0.00396875
17N40200E12-155-G	2	39.8	6.35	0.79375	155	213	2	0.00396875
17N40200E12-170-G	2	39.8	6.35	0.79375	170	213	2	0.00396875
17N40200E12-180-G	2	39.8	6.35	0.79375	180	213	2	0.00396875
17N40200E12-210-G	2	39.8	6.35	0.79375	210	213	2	0.00396875
17N40200E12-250-G	2	39.8	6.35	0.79375	250	213	2	0.00396875
17N40200E12-300-G	2	39.8	6.35	0.79375	300	213	2	0.00396875
17N40200E17-80-G	2	39.8	6.35	6.35	80	70	2	0.03175
17N40200E17-90-G	2	39.8	6.35	6.35	90	70	2	0.03175
17N40200E17-100-G	2	39.8	6.35	6.35	100	70	2	0.03175
17N40200E17-110-G	2	39.8	6.35	6.35	110	70	2	0.03175
17N40200E17-125-G	2	39.8	6.35	6.35	125	70	2	0.03175
17N40200E17-155-G	2	39.8	6.35	6.35	155	70	2	0.03175
17N40200E17-170-G	2	39.8	6.35	6.35	170	70	2	0.03175
17N40200E17-180-G	2	39.8	6.35	6.35	180	70	2	0.03175
17N40200E17-210-G	2	39.8	6.35	6.35	210	70	2	0.03175
17N40200E17-250-G	2	39.8	6.35	6.35	250	70	2	0.03175
17N40200E17-300-G	2	39.8	6.35	6.35	300	70	2	0.03175
17N40200E19-80-G	2	39.8	6.35	12.7	80	38	2	0.0635
17N40200E19-90-G	2	39.8	6.35	12.7	90	38	2	0.0635
17N40200E19-100-G	2	39.8	6.35	12.7	100	38	2	0.0635
17N40200E19-110-G	2	39.8	6.35	12.7	110	38	2	0.0635
17N40200E19-125-G	2	39.8	6.35	12.7	125	38	2	0.0635
17N40200E19-155-G	2	39.8	6.35	12.7	155	38	2	0.0635
17N40200E19-170-G	2	39.8	6.35	12.7	170	38	2	0.0635
17N40200E19-180-G	2	39.8	6.35	12.7	180	38	2	0.0635
17N40200E19-210-G	2	39.8	6.35	12.7	210	38	2	0.0635
17N40200E19-250-G	2	39.8	6.35	12.7	250	38	2	0.0635
17N40200E19-300-G	2	39.8	6.35	12.7	300	38	2	0.0635
17N48100W1-80-G	1	48.3	6	1	80	273	2	0.005
17N48100W1-90-G	1	48.3	6	1	90	273	2	0.005
17N48100W1-100-G	1	48.3	6	1	100	273	2	0.005
17N48100W1-110-G	1	48.3	6	1	110	273	2	0.005
17N48100W1-125-G	1	48.3	6	1	125	273	2	0.005
17N48100W1-155-G	1	48.3	6	1	155	273	2	0.005
17N48100W1-170-G	1	48.3	6	1	170	273	2	0.005
17N48100W1-180-G	1	48.3	6	1	180	273	2	0.005
17N48100W1-210-G	1	48.3	6	1	210	273	2	0.005
17N48100W1-250-G	1	48.3	6	1	250	273	2	0.005
17N48100W1-300-G	1	48.3	6	1	300	273	2	0.005
17N48100E12-80-G	1	48.3	6.35	0.79375	80	220	2	0.00396875
17N48100E12-90-G	1	48.3	6.35	0.79375	90	220	2	0.00396875
17N48100E12-100-G	1	48.3	6.35	0.79375	100	220	2	0.00396875
17N48100E12-110-G	2	48.3	6.35	0.79375	110	292	2	0.00396875
17N48100E12-125-G	2	48.3	6.35	0.79375	125	292	2	0.00396875
17N48100E12-155-G	2	48.3	6.35	0.79375	155	292	2	0.00396875
17N48100E12-170-G	2	48.3	6.35	0.79375	170	292	2	0.00396875
17N48100E12-180-G	2	48.3	6.35	0.79375	180	292	2	0.00396875
17N48100E12-210-G	2	48.3	6.35	0.79375	210	292	2	0.00396875
17N48100E12-250-G	2	48.3	6.35	0.79375	250	292	2	0.00396875
17N48100E12-300-G	2	48.3	6.35	0.79375	300	292	2	0.00396875
17N48100E17-80-G	2	48.3	6.35	6.35	80	95	2	0.03175
17N48100E17-90-G	2	48.3	6.35	6.35	90	95	2	0.03175
17N48100E17-100-G	2	48.3	6.35	6.35	100	95	2	0.03175
17N48100E17-110-G	2	48.3	6.35	6.35	110	95	2	0.03175
17N48100E17-125-G	2	48.3	6.35	6.35	125	95	2	0.03175
17N48100E17-155-G	2	48.3	6.35	6.35	155	95	2	0.03175
17N48100E17-170-G	2	48.3	6.35	6.35	170	95	2	0.03175
17N48100E17-180-G	2	48.3	6.35	6.35	180	95	2	0.03175
17N48100E17-210-G	2	48.3	6.35	6.35	210	95	2	0.03175
17N48100E17-250-G	2	48.3	6.35	6.35	250	95	2	0.03175
17N48100E17-300-G	2	48.3	6.35	6.35	300	95	2	0.03175
17N48100E19-80-G	2	48.3	6.35	12.7	80	52	2	0.0635
17N48100E19-90-G	2	48.3	6.35	12.7	90	52	2	0.0635
17N48100E19-100-G	2	48.3	6.35	12.7	100	52	2	0.0635
17N48100E19-110-G	2	48.3	6.35	12.7	110	52	2	0.0635
17N48100E19-125-G	2	48.3	6.35	12.7	125	52	2	0.0635
17N48100E19-155-G	2	48.3	6.35	12.7	155	52	2	0.0635
17N48100E19-170-G	2	48.3	6.35	12.7	170	52	2	0.0635
17N48100E19-180-G	2	48.3	6.35	12.7	180	52	2	0.0635
17N48100E19-210-G	2	48.3	6.35	12.7	210	52	2	0.0635
17N48100E19-250-G	2	48.3	6.35	12.7	250	52	2	0.0635
17N48100E19-300-G	2	48.3	6.35	12.7	300	52	2	0.0635
