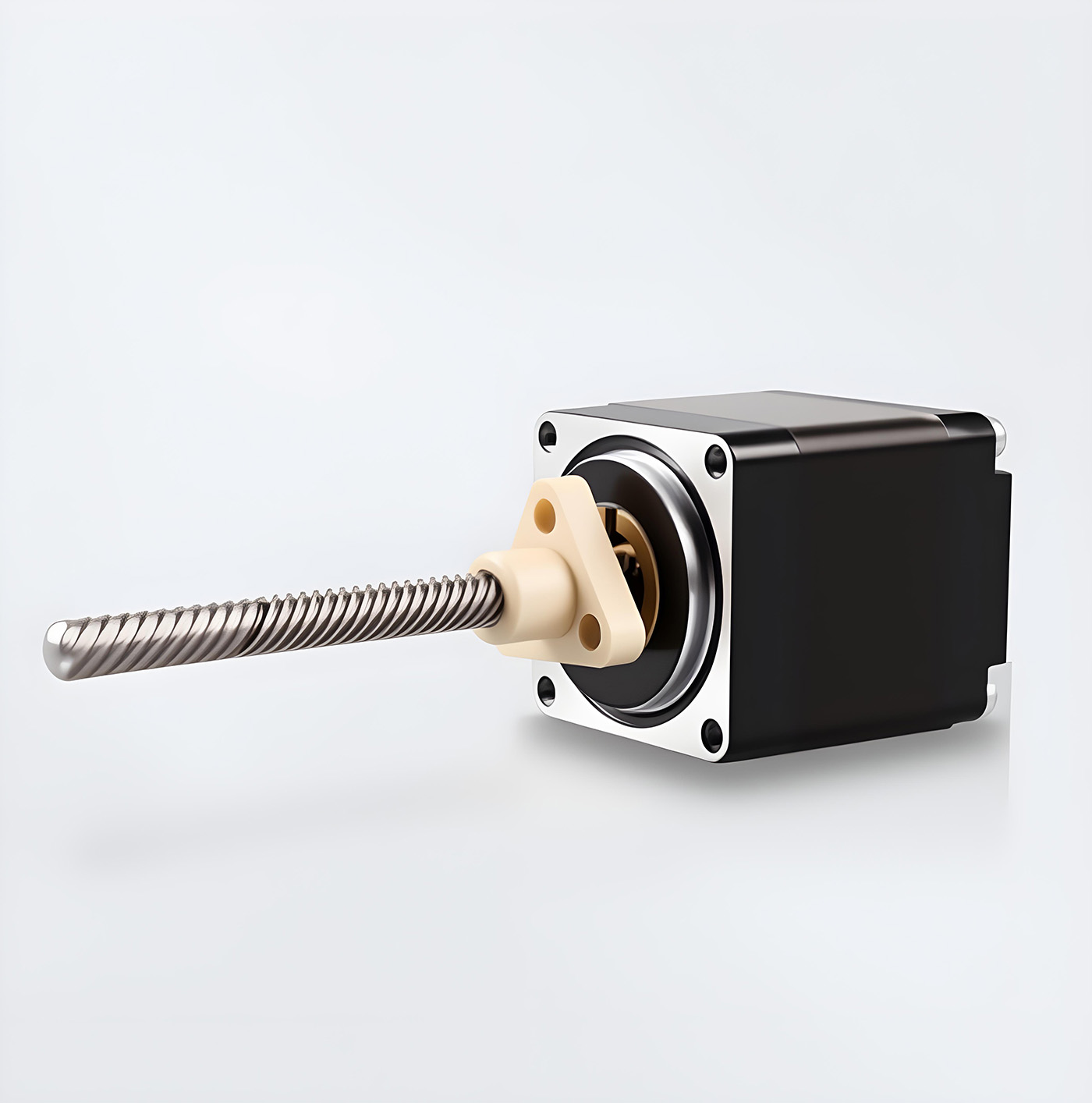

NEMA11 28mm External Nut Linear Stepper Motors

Product List

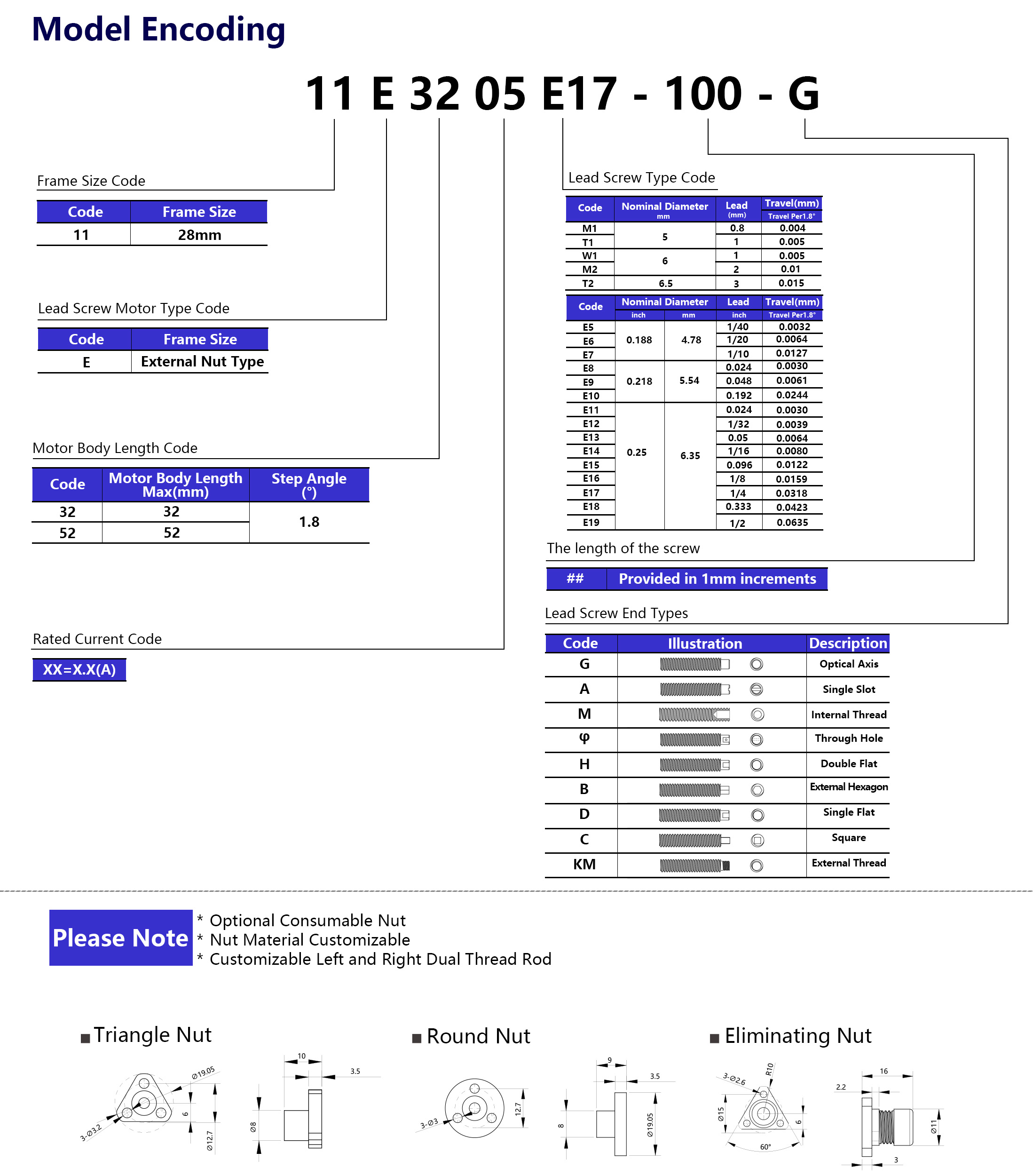

NEMA11, Mini External nut stepper motor linear actuators, 2 Phase, 1.8 Degree, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.

Item	Phase	Length (mm)	Screw Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Linear Travel per Step (mm)	Rated Thrust (N @ 300RPM)	Rated Current (A)	Technical parameter drawing
11E3205E17-100-G	2	32	100	6.35	6.35	0.0318	12	0.5	11E3205E17-100-G.pdf
11E3210E17-100-G	2	32	100	6.35	6.35	0.0318	12	1	11E3210E17-100-G.pdf
11E3205E17-150-G	2	32	150	6.35	6.35	0.0318	12	0.5	11E3205E17-150-G.pdf
11E3210E17-180-G	2	32	180	6.35	6.35	0.0318	12	1	11E3210E17-180-G.pdf
11E3210E17-150-G	2	32	150	6.35	6.35	0.0318	12	1	11E3210E17-150-G.pdf
11E3205E17-200-G	2	32	200	6.35	6.35	0.0318	12	0.5	11E3205E17-200-G.pdf
11E3210E17-200-G	2	32	200	6.35	6.35	0.0318	12	1	11E3210E17-200-G.pdf
11E3205E17-50-G	2	32	50	6.35	6.35	0.0318	12	0.5	11E3205E17-50-G.pdf
11E3210E17-50-G	2	32	50	6.35	6.35	0.0318	12	1	11E3210E17-50-G.pdf
11E3205E19-100-G	2	32	100	6.35	12.7	0.0635	6	0.5	11E3205E19-100-G.pdf
11E3210E19-100-G	2	32	100	6.35	12.7	0.0635	6	1	11E3210E19-100-G.pdf
11E3205E19-150-G	2	32	150	6.35	12.7	0.0635	6	0.5	11E3205E19-150-G.pdf
11E3210E19-150-G	2	32	150	6.35	12.7	0.0635	6	1	11E3210E19-150-G.pdf
11E3205E19-200-G	2	32	200	6.35	12.7	0.0635	6	0.5	11E3205E19-200-G.pdf
11E3210E19-200-G	2	32	200	6.35	12.7	0.0635	6	1	11E3210E19-200-G.pdf
11E3205E19-50-G	2	32	50	6.35	12.7	0.0635	6	0.5	11E3205E19-50-G.pdf
11E3210E19-50-G	2	32	50	6.35	12.7	0.0635	6	1	11E3210E19-50-G.pdf
11E3205T2-100-G	2	32	100	6.5	3	0.015	22	0.5	11E3205T2-100-G.pdf
11E3210T2-100-G	2	32	100	6.5	3	0.015	21	1	11E3210T2-100-G.pdf
11E3205T2-150-G	2	32	150	6.5	3	0.015	22	0.5	11E3205T2-150-G.pdf
11E3210T2-150-G	2	32	150	6.5	3	0.015	21	1	11E3210T2-150-G.pdf
11E3205T2-180-G	2	32	180	6.5	3	0.015	21	1	11E3205T2-180-G.pdf
11E3205T2-200-G	2	32	200	6.5	3	0.015	22	0.5	11E3205T2-200-G.pdf
11E3210T2-200-G	2	32	200	6.5	3	0.015	21	1	11E3210T2-200-G.pdf
11E3205T2-050-G	2	32	50	6.5	3	0.015	22	0.5	11E3205T2-050-G.pdf
11E3210T2-050-G	2	32	50	6.5	3	0.015	21	1	11E3210T2-050-G.pdf
11E3205W1-100-G	2	32	100	6	1	0.005	47	0.5	11E3205W1-100-G.pdf
11E3210W1-100-G	2	32	100	6	1	0.005	46	1	11E3210W1-100-G.pdf
11E3205W1-150-G	2	32	150	6	1	0.005	47	0.5	11E3205W1-150-G.pdf
11E3210W1-150-G	2	32	150	6	1	0.005	46	1	11E3210W1-150-G.pdf
11E3205W1-200-G	2	32	200	6	1	0.005	47	0.5	11E3205W1-200-G.pdf
11E3210W1-200-G	2	32	200	6	1	0.005	46	1	11E3210W1-200-G.pdf
11E3205W1-50-G	2	32	50	6	1	0.005	47	0.5	11E3205W1-50-G.pdf
11E3210W1-50-G	2	32	50	6	1	0.005	46	1	11E3210W1-50-G.pdf
11E5205E17-100-G	2	52	100	6.35	6.35	0.0318	27	1	11E5205E17-100-G.pdf
11E5205E17-150-G	2	52	150	6.35	6.35	0.0318	27	1	11E5205E17-150-G.pdf
11E5205E17-200-G	2	52	200	6.35	6.35	0.0318	27	1	11E5205E17-200-G.pdf
11E5205E17-50-G	2	52	50	6.35	6.35	0.0318	27	1	11E5205E17-50-G.pdf
11E5205E19-100-G	2	52	100	6.35	12.7	0.0635	15	1	11E5205E19-100-G.pdf
11E5205E19-150-G	2	52	150	6.35	12.7	0.0635	15	1	11E5205E19-150-G.pdf
11E5205E19-200-G	2	52	200	6.35	12.7	0.0635	15	1	11E5205E19-200-G.pdf
11E5205E19-50-G	2	52	50	6.35	12.7	0.0635	15	1	11E5205E19-50-G.pdf
11E5205T2-100-G	2	52	100	6.5	3	0.015	46	1	11E5205T2-100-G.pdf
11E5205T2-150-G	2	52	150	6.5	3	0.015	46	1	11E5205T2-150-G.pdf
11E5205T2-200-G	2	52	200	6.5	3	0.015	46	1	11E5205T2-200-G.pdf
11E5205T2-50-G	2	52	50	6.5	3	0.015	46	1	11E5205T2-50-G.pdf
11E5205W1-100-G	2	52	100	6	1	0.005	100	1	11E5205W1-100-G.pdf
11E5205W1-150-G	2	52	150	6	1	0.005	100	1	11E5205W1-150-G.pdf
11E5205W1-200-G	2	52	200	6	1	0.005	100	1	11E5205W1-200-G.pdf
11E5205W1-50-G	2	52	50	6	1	0.005	100	1	11E5205W1-50-G.pdf
