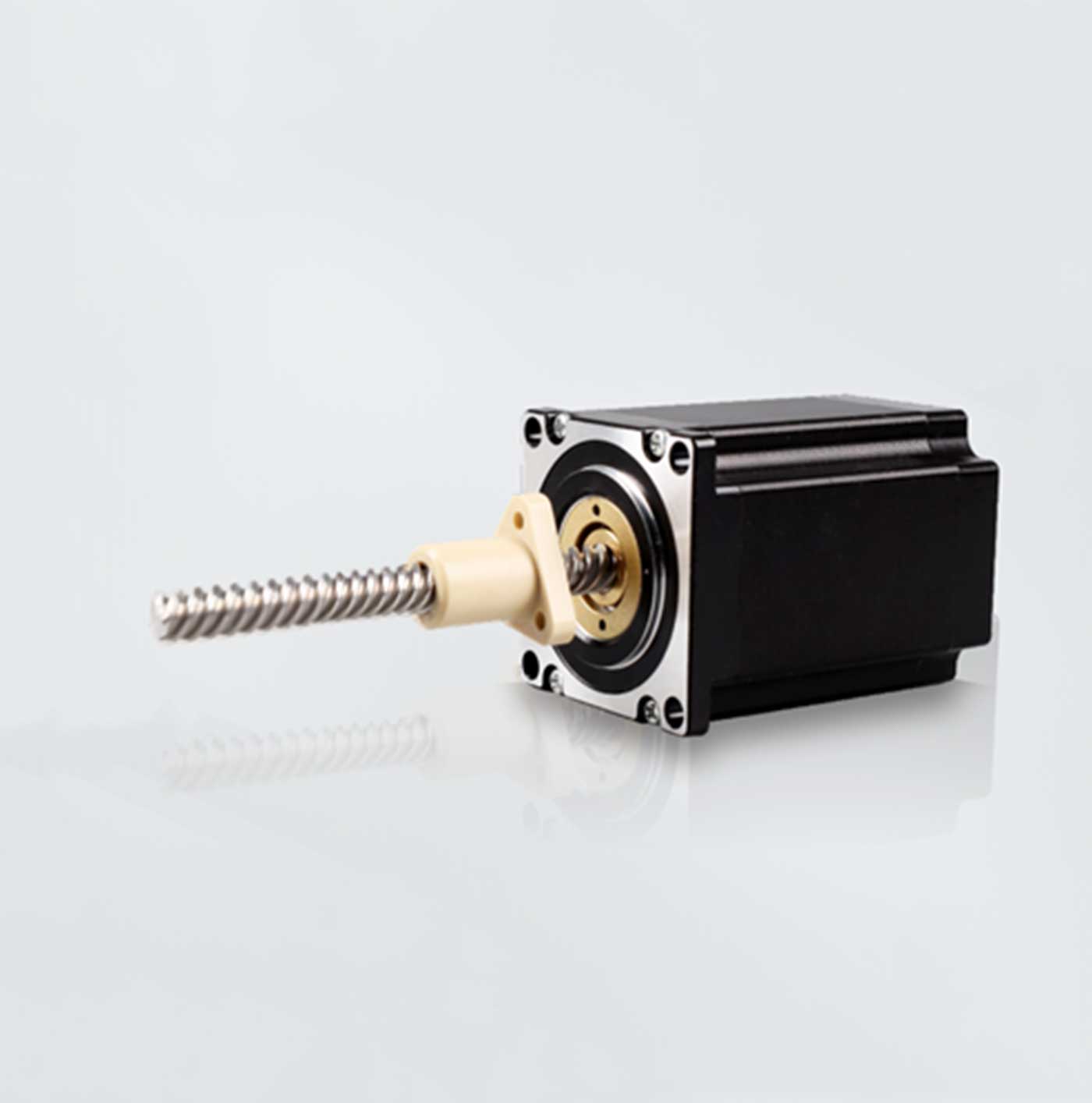

NEMA23, 2 Phase, 1.8 degree, Linear stepper motors, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.

Item	Phase	Length (mm)	Screw Length (mm)	Screw Diameter (mm)	Screw Lead (mm)	Linear Travel per Step (mm)	Rated Thrust (N @ 300RPM)	Rated Current (A)
23E45210T13-100-G	2	45	100	12	2	0.01	247	2.1
23E45210T13-150-G	2	45	150	12	2	0.01	247	2.1
23E45210T13-200-G	2	45	200	12	2	0.01	247	2.1
23E45210T13-250-G	2	45	250	12	2	0.01	247	2.1
23E45210T13-300-G	2	45	300	12	2	0.01	247	2.1
23E45210T13-350-G	2	45	350	12	2	0.01	247	2.1
23E45210T13-400-G	2	45	400	12	2	0.01	247	2.1
23E45210T14-100-G	2	45	100	12	6	0.03	124	2.1
23E45210T14-150-G	2	45	150	12	6	0.03	124	2.1
23E45210T14-200-G	2	45	200	12	6	0.03	124	2.1
23E45210T14-250-G	2	45	250	12	6	0.03	124	2.1
23E45210T14-300-G	2	45	300	12	6	0.03	124	2.1
23E45210T14-350-G	2	45	350	12	6	0.03	124	2.1
23E45210T14-400-G	2	45	400	12	6	0.03	124	2.1
23E45210T12-100-G	2	45	100	10	10.5	0.0525	94	2.1
23E45210T12-150-G	2	45	150	10	10.5	0.0525	94	2.1
23E45210T12-200-G	2	45	200	10	10.5	0.0525	94	2.1
23E45210T12-250-G	2	45	250	10	10.5	0.0525	94	2.1
23E45210T12-300-G	2	45	300	10	10.5	0.0525	94	2.1
23E45210T12-350-G	2	45	350	10	10.5	0.0525	94	2.1
23E45210T12-400-G	2	45	400	10	10.5	0.0525	94	2.1
23E45210E24-100-G	2	45	100	12.5	25.4	0.127	36	2.1
23E45210E24-150-G	2	45	150	12.5	25.4	0.127	36	2.1
23E45210E24-200-G	2	45	200	12.5	25.4	0.127	36	2.1
23E45210E24-250-G	2	45	250	12.5	25.4	0.127	36	2.1
23E45210E24-300-G	2	45	300	12.5	25.4	0.127	36	2.1
23E45210E24-350-G	2	45	350	12.5	25.4	0.127	36	2.1
23E45210E24-400-G	2	45	400	12.5	25.4	0.127	36	2.1
23E57220T13-100-G	2	57	100	12	2	0.01	270	2.2
23E57220T13-150-G	2	57	150	12	2	0.01	270	2.2
23E57220T13-200-G	2	57	200	12	2	0.01	270	2.2
23E57220T13-250-G	2	57	250	12	2	0.01	270	2.2
23E57220T13-300-G	2	57	300	12	2	0.01	270	2.2
23E57220T13-350-G	2	57	350	12	2	0.01	270	2.2
23E57220T13-400-G	2	57	400	12	2	0.01	270	2.2
23E57220T14-100-G	2	57	100	12	6	0.03	135	2.2
23E57220T14-150-G	2	57	150	12	6	0.03	135	2.2
23E57220T14-200-G	2	57	200	12	6	0.03	135	2.2
23E57220T14-250-G	2	57	250	12	6	0.03	135	2.2
23E57220T14-300-G	2	57	300	12	6	0.03	135	2.2
23E57220T14-350-G	2	57	350	12	6	0.03	135	2.2
23E57220T14-400-G	2	57	400	12	6	0.03	135	2.2
23E57220T12-100-G	2	57	100	10	10.5	0.0525	103	2.2
23E57220T12-150-G	2	57	150	10	10.5	0.0525	103	2.2
23E57220T12-200-G	2	57	200	10	10.5	0.0525	103	2.2
23E57220T12-250-G	2	57	250	10	10.5	0.0525	103	2.2
23E57220T12-300-G	2	57	300	10	10.5	0.0525	103	2.2
23E57220T12-350-G	2	57	350	10	10.5	0.0525	103	2.2
23E57220E24-100-G	2	57	100	12.5	25.4	0.127	39	2.2
23E57220E24-150-G	2	57	150	12.5	25.4	0.127	39	2.2
23E57220E24-200-G	2	57	200	12.5	25.4	0.127	39	2.2
23E57220E24-250-G	2	57	250	12.5	25.4	0.127	39	2.2
23E57220E24-300-G	2	57	300	12.5	25.4	0.127	39	2.2
23E57220E24-350-G	2	57	350	12.5	25.4	0.127	39	2.2
23E57220E24-400-G	2	57	400	12.5	25.4	0.127	39	2.2
23E79150T13-100-G	2	79	100	12	2	0.01	250	1.5
23E79150T13-150-G	2	79	150	12	2	0.01	250	1.5
23E79150T13-200-G	2	79	200	12	2	0.01	250	1.5
23E79150T13-250-G	2	79	250	12	2	0.01	250	1.5
23E79150T13-300-G	2	79	300	12	2	0.01	250	1.5
23E79150T13-350-G	2	79	350	12	2	0.01	250	1.5
23E79150T13-400-G	2	79	400	12	2	0.01	250	1.5
23E79150T14-100-G	2	79	100	12	6	0.03	125	1.5
23E79150T14-150-G	2	79	150	12	6	0.03	125	1.5
23E79150T14-200-G	2	79	200	12	6	0.03	125	1.5
23E79150T14-250-G	2	79	250	12	6	0.03	125	1.5
23E79150T14-300-G	2	79	300	12	6	0.03	125	1.5
23E79150T14-350-G	2	79	350	12	6	0.03	125	1.5
23E79150T14-400-G	2	79	400	12	6	0.03	125	1.5
23E79150T12-100-G	2	79	100	10	10.5	0.0525	95	1.5
23E79150T12-150-G	2	79	150	10	10.5	0.0525	95	1.5
23E79150T12-200-G	2	79	200	10	10.5	0.0525	95	1.5
23E79150T12-250-G	2	79	250	10	10.5	0.0525	95	1.5
23E79150T12-300-G	2	79	300	10	10.5	0.0525	95	1.5
23E79150T12-350-G	2	79	350	10	10.5	0.0525	95	1.5
23E79150T12-400-G	2	79	400	10	10.5	0.0525	95	1.5
23E79150E24-100-G	2	79	100	12.5	25.4	0.127	36	1.5
23E79150E24-150-G	2	79	150	12.5	25.4	0.127	36	1.5
23E79150E24-200-G	2	79	200	12.5	25.4	0.127	36	1.5
23E79150E24-250-G	2	79	250	12.5	25.4	0.127	36	1.5
23E79150E24-300-G	2	79	300	12.5	25.4	0.127	36	1.5
23E79150E24-350-G	2	79	350	12.5	25.4	0.127	36	1.5
23E79150E24-400-G	2	79	400	12.5	25.4	0.127	36	1.5
23E79300T13-100-G	2	79	100	12	2	0.01	444	3
23E79300T13-150-G	2	79	150	12	2	0.01	444	3
23E79300T13-200-G	2	79	200	12	2	0.01	444	3
23E79300T13-250-G	2	79	250	12	2	0.01	444	3
23E79300T13-300-G	2	79	300	12	2	0.01	444	3
23E79300T13-350-G	2	79	350	12	2	0.01	444	3
23E79300T13-400-G	2	79	400	12	2	0.01	444	3
23E79300T14-100-G	2	79	100	12	6	0.03	222	3
23E79300T14-150-G	2	79	150	12	6	0.03	222	3
23E79300T14-200-G	2	79	200	12	6	0.03	222	3
23E79300T14-250-G	2	79	250	12	6	0.03	222	3
23E79300T14-300-G	2	79	300	12	6	0.03	222	3
23E79300T14-350-G	2	79	350	12	6	0.03	222	3
23E79300T14-400-G	2	79	400	12	6	0.03	222	3
23E79300T12-100-G	2	79	100	10	10.5	0.0525	169	3
23E79300T12-150-G	2	79	150	10	10.5	0.0525	169	3
23E79300T12-200-G	2	79	200	10	10.5	0.0525	169	3
23E79300T12-250-G	2	79	250	10	10.5	0.0525	169	3
23E79300T12-300-G	2	79	300	10	10.5	0.0525	169	3
23E79300T12-350-G	2	79	350	10	10.5	0.0525	169	3
23E79300T12-400-G	2	79	400	10	10.5	0.0525	169	3
23E79300E24-100-G	2	79	100	12.5	25.4	0.127	64	3
23E79300E24-150-G	2	79	150	12.5	25.4	0.127	64	3
23E79300E24-200-G	2	79	200	12.5	25.4	0.127	64	3
23E79300E24-250-G	2	79	250	12.5	25.4	0.127	64	3
23E79300E24-300-G	2	79	300	12.5	25.4	0.127	64	3
23E79300E24-350-G	2	79	350	12.5	25.4	0.127	64	3
23E79300E24-400-G	2	79	400	12.5	25.4	0.127	64	3
