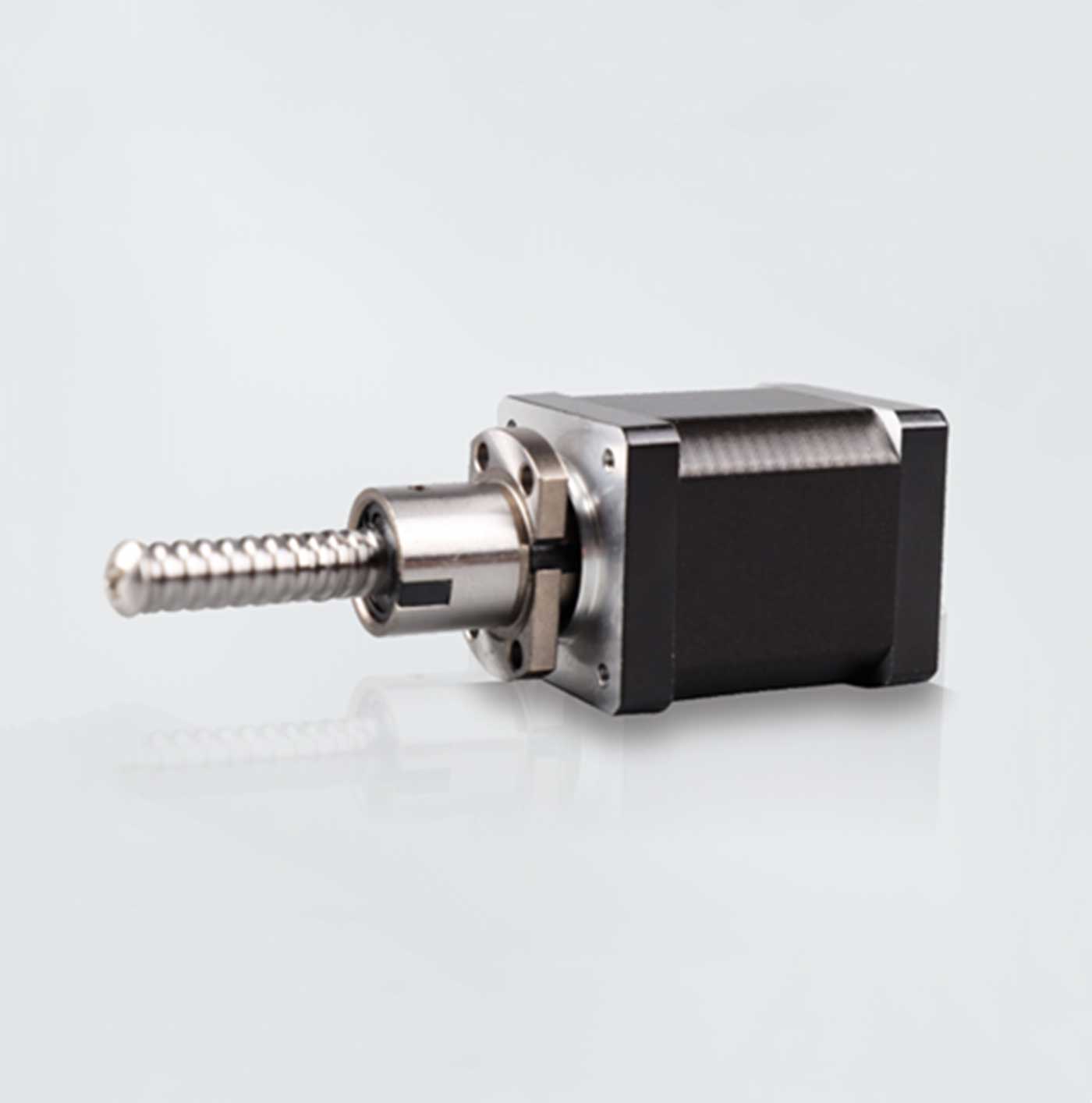

NEMA14, External Nut Linear Stepper Motor Actuator, Ball Screw, the body length is available in 27mm and 35mm options, the resolution range is from 0.005 to 0.0635mm, the maximum thrust can reach 320N, and the screw length range is from 50 to 200mm.If you need the technical parameter drawing, please contact us, and we will send it to you as soon as possible.
| Item | Rated Current (A) | Length (mm) | Screw Diameter (mm) | Screw Lead (mm) | Screw Length (mm) | Rated Thrust (N @ 300RPM) | Phase | Linear Travel per Step (mm) |
| B14E35150B5-75-G | 1.5 | 35.1 | 8 | 1 | 75 | 200 | 2 | 0.005 |
| B14E35150B5-100-G | 1.5 | 35.1 | 8 | 1 | 100 | 200 | 2 | 0.005 |
| B14E35150B5-125-G | 1.5 | 35.1 | 8 | 1 | 125 | 200 | 2 | 0.005 |
| B14E35150B5-150-G | 1.5 | 35.1 | 8 | 1 | 150 | 200 | 2 | 0.005 |
| B14E35150B5-175-G | 1.5 | 35.1 | 8 | 1 | 175 | 200 | 2 | 0.005 |
| B14E35150B5-200-G | 1.5 | 35.1 | 8 | 1 | 200 | 200 | 2 | 0.005 |
| B14E35150B5-225-G | 1.5 | 35.1 | 8 | 1 | 225 | 200 | 2 | 0.005 |
| B14E35150B5-250-G | 1.5 | 35.1 | 8 | 1 | 250 | 200 | 2 | 0.005 |
| B14E35150B6-75-G | 1.5 | 35.1 | 8 | 2 | 75 | 150 | 2 | 0.01 |
| B14E35150B6-100-G | 1.5 | 35.1 | 8 | 2 | 100 | 150 | 2 | 0.01 |
| B14E35150B6-125-G | 1.5 | 35.1 | 8 | 2 | 125 | 150 | 2 | 0.01 |
| B14E35150B6-150-G | 1.5 | 35.1 | 8 | 2 | 150 | 150 | 2 | 0.01 |
| B14E35150B6-175-G | 1.5 | 35.1 | 8 | 2 | 175 | 150 | 2 | 0.01 |
| B14E35150B6-200-G | 1.5 | 35.1 | 8 | 2 | 200 | 150 | 2 | 0.01 |
| B14E35150B6-225-G | 1.5 | 35.1 | 8 | 2 | 225 | 150 | 2 | 0.01 |
| B14E35150B6-250-G | 1.5 | 35.1 | 8 | 2 | 250 | 150 | 2 | 0.01 |
| B14E35150B8-75-G | 1.5 | 35.1 | 8 | 5 | 75 | 54 | 2 | 0.04 |
| B14E35150B8-100-G | 1.5 | 35.1 | 8 | 5 | 100 | 54 | 2 | 0.04 |
| B14E35150B8-125-G | 1.5 | 35.1 | 8 | 5 | 125 | 54 | 2 | 0.04 |
| B14E35150B8-150-G | 1.5 | 35.1 | 8 | 5 | 150 | 54 | 2 | 0.04 |
| B14E35150B8-175-G | 1.5 | 35.1 | 8 | 5 | 175 | 54 | 2 | 0.04 |
| B14E35150B8-200-G | 1.5 | 35.1 | 8 | 5 | 200 | 54 | 2 | 0.04 |
| B14E35150B8-225-G | 1.5 | 35.1 | 8 | 5 | 225 | 54 | 2 | 0.04 |
| B14E35150B8-250-G | 1.5 | 35.1 | 8 | 5 | 250 | 54 | 2 | 0.04 |
| B14E35150B9-75-G | 1.5 | 35.1 | 8 | 8 | 75 | 25 | 2 | 0.04 |
| B14E35150B9-100-G | 1.5 | 35.1 | 8 | 8 | 100 | 25 | 2 | 0.04 |
| B14E35150B9-125-G | 1.5 | 35.1 | 8 | 8 | 125 | 25 | 2 | 0.04 |
| B14E35150B9-150-G | 1.5 | 35.1 | 8 | 8 | 150 | 25 | 2 | 0.04 |
| B14E35150B9-175-G | 1.5 | 35.1 | 8 | 8 | 175 | 25 | 2 | 0.04 |
| B14E35150B9-200-G | 1.5 | 35.1 | 8 | 8 | 200 | 25 | 2 | 0.04 |
| B14E35150B9-225-G | 1.5 | 35.1 | 8 | 8 | 225 | 25 | 2 | 0.04 |
| B14E35150B9-250-G | 1.5 | 35.1 | 8 | 8 | 250 | 25 | 2 | 0.04 |
