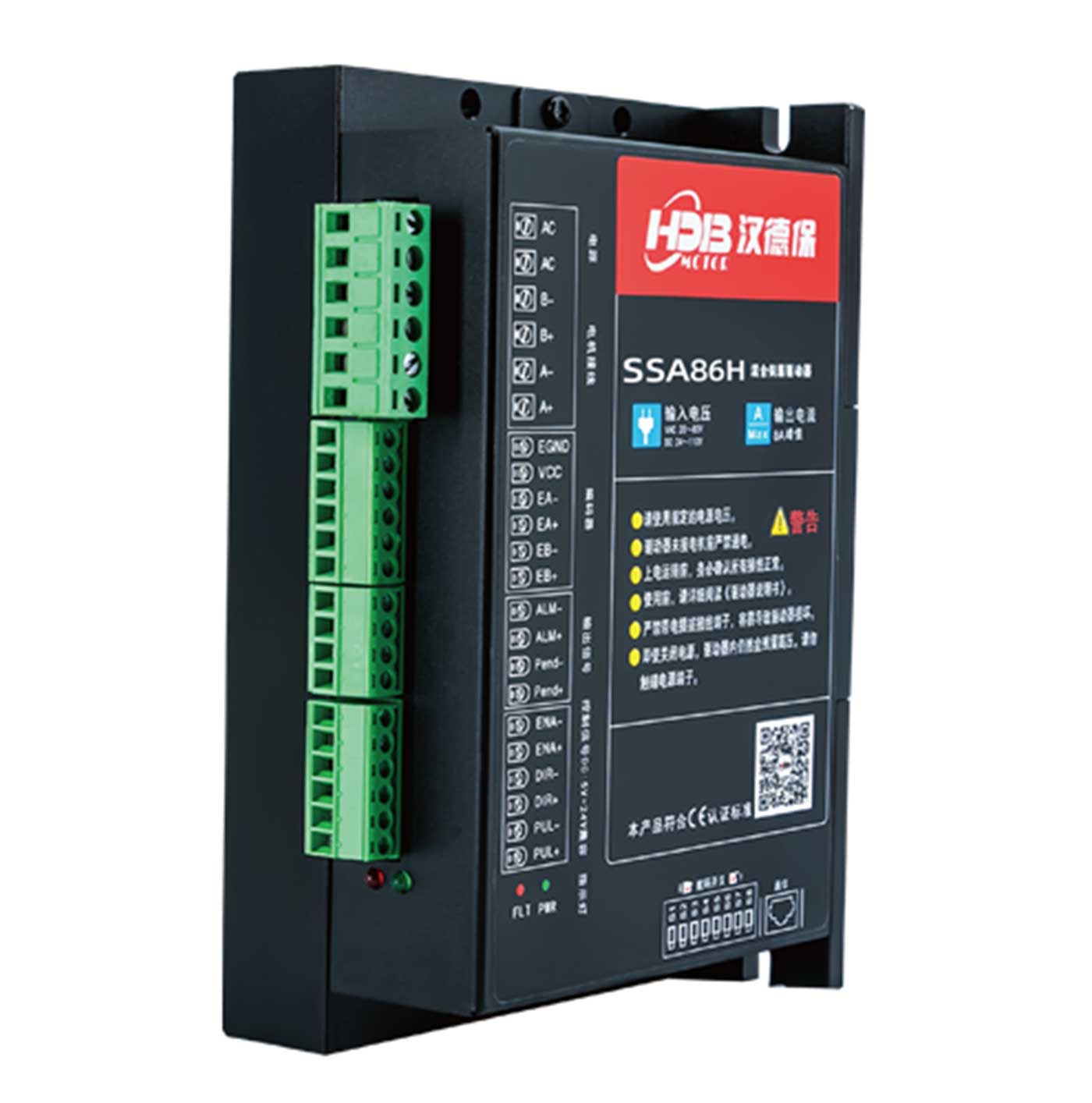

1、32-bit dedicated DSP chip for motor control.
2、Voltage range: AC 24V to 80V.
3、16-level microstepping, with arbitrary microstepping (800-25600) configurable via host computer.
4、Compatible with 5-24V signals, no external series resistor required.

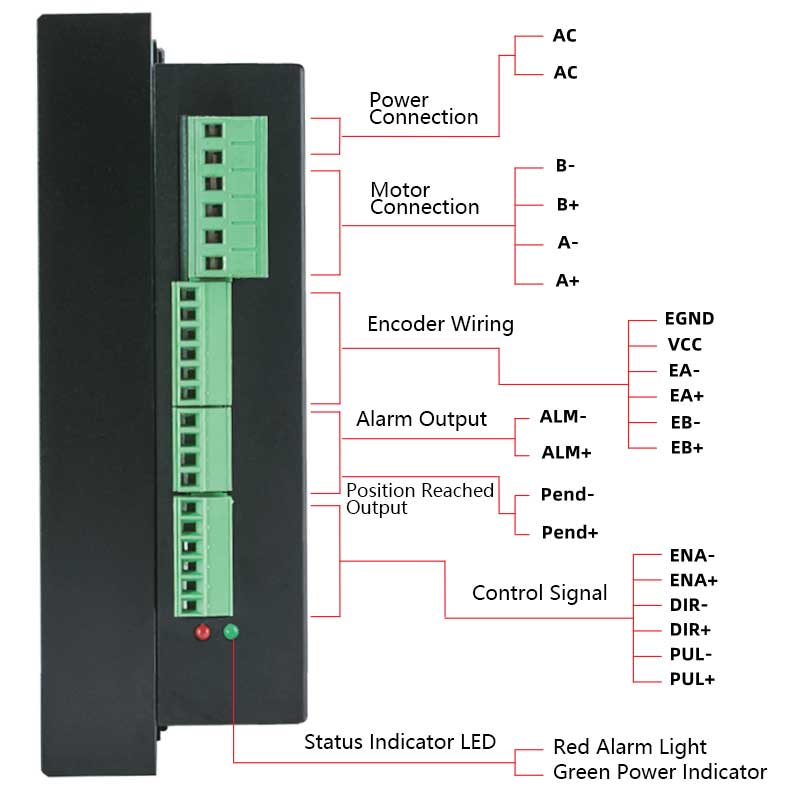

5、Built-in position reached and alarm outputs for convenient monitoring and control.
| Model | Compatible Motor (mm) | Operating Voltage (VAC) | Peak Current (A) | Signal Voltage (V) | Control Signal | Encoder Lines | Encoder Type |
|---|---|---|---|---|---|---|---|
| SSA60H | 60 | 80 | 5.0 | 5-24 | Single-ended/Differential | 2500 | A/B dual-channel supports optical and magnetic encoders |
| SSA86H | 86 | 80 | 8.0 | 5-24 | Single-ended/Differential | 2500 | A/B dual-channel supports optical and magnetic encoders |

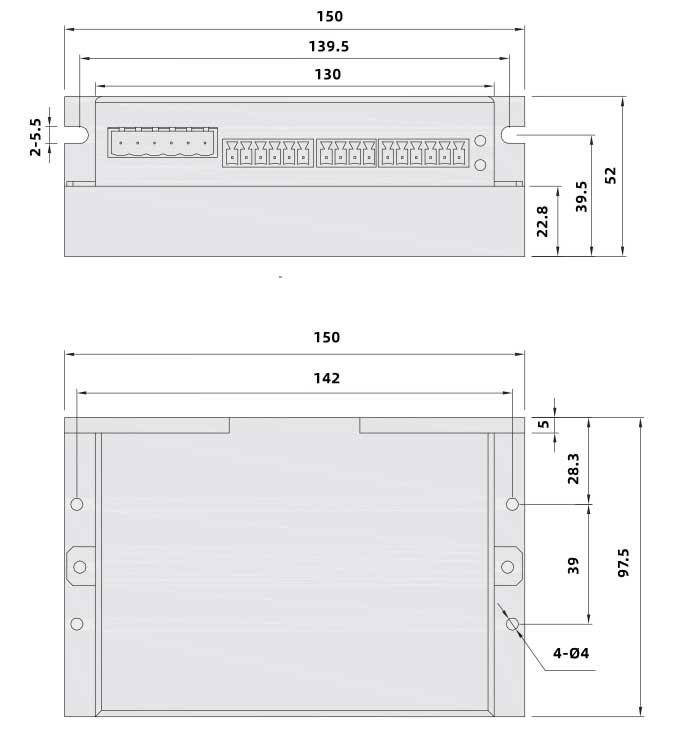

Notes:
Only technical personnel are allowed to install, debug, or maintain this product.
Do not hot-plug the driver or motor terminals.
To prevent interference with the driver, it is recommended to use shielded cables for control signals, and the shielding layer should be shorted to ground.
When wiring, do not pre-tin the wire ends (this may cause improper connection).
