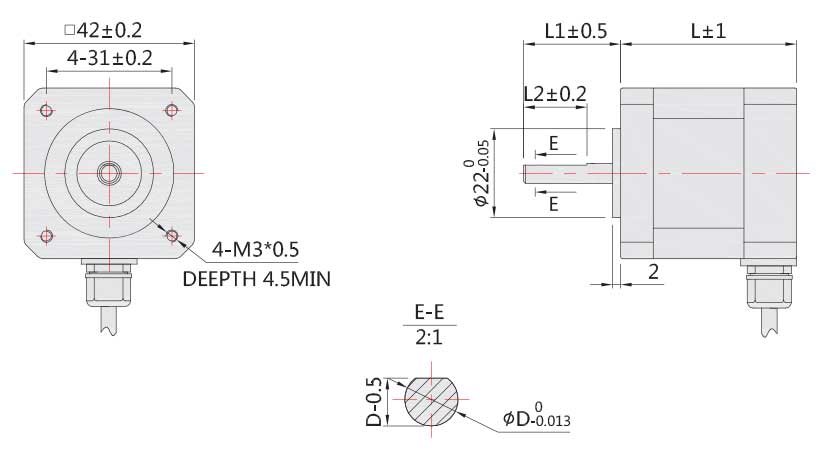

1、Shaft options: Offers various shaft types including single flat, double flat, keyway, and gear teeth.
2、Lead wire options: Customized winding and lead wire arrangements available according to different application requirements.
3、Accessory options: Provides various accessories for stepper motors, such as encoders, planetary gear reducers, and power-off brakes.
4、Usage notes: Pay attention to tolerance fit during use. When connecting the motor to the driver, do not miswire the phases.

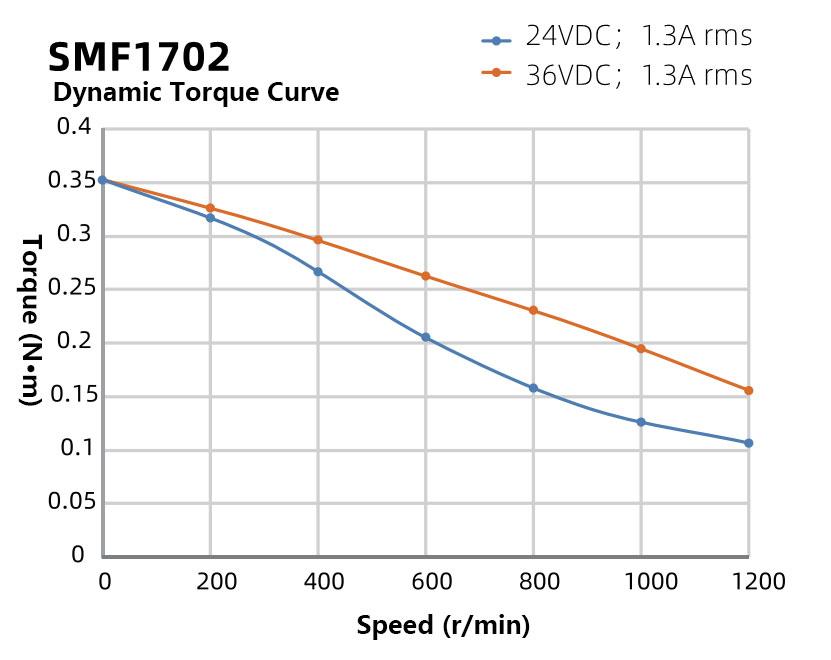

| Model | Holding Torque (N.m) | Rated Current (A) | Rotor Inertia (g.cm²) | Motor Length (mm) | Waterproof Rating | Recommended Driver |
|---|---|---|---|---|---|---|
| SMF1702 | 0.35 | 1.3 | 57 | ≤46.5 | IP65 | S-224D 12-48VDC |
The "Recommended Driver" listed above is a pulse-type stepper motor driver. Additionally, we can provide customers with:
Bus-type stepper drivers (RS485, CANopen, EtherCAT communication control); intelligent stepper drivers (potentiometer speed control, built-in PLC programming functions, etc.).
